Torque Converter Outlet Pressure

Have also cleaned transmission magnets. Pumps 1 and 2 have positive outlet an-gles Figs.

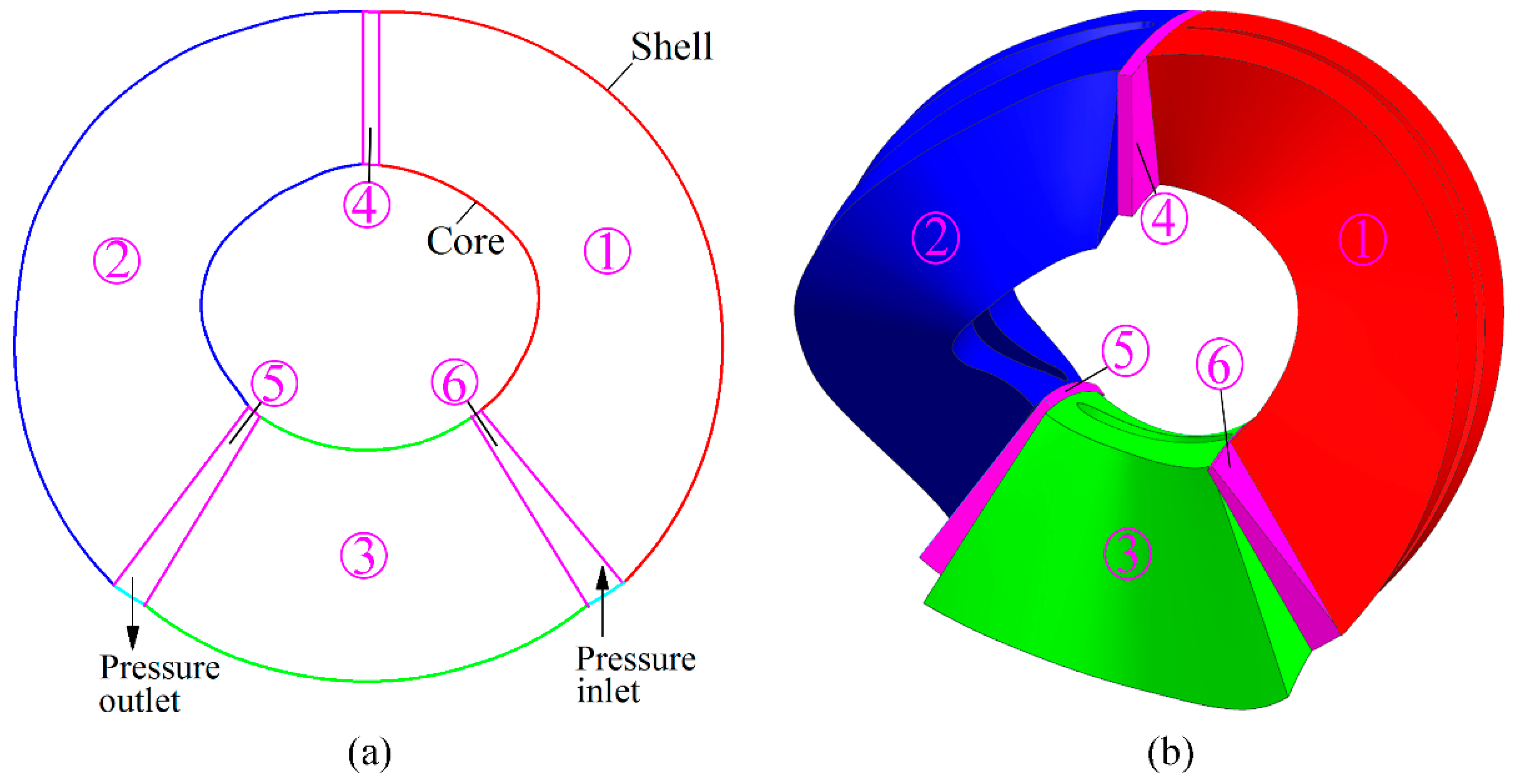

Applied Sciences Free Full Text 3d Cavitation Shedding Dynamics Cavitation Flow Fluid Vortex Formation Interaction In A Hydrodynamic Torque Converter Html

The torque converter clutch solenoid is a common part that fails within the automatic transmission.

Torque converter outlet pressure. Got reading of 300psi but gauge range goes to 5000 psi. 11 and 12 and pump 3 has a negative outlet angle FIGURE 10 Turbine mid-plane normalized static pressure. Bly to 0 to 290 psi 0 to 2000 kPa to pressure gage.

The absence of full-scale power converter leads to improved reliability and availability and compact. If the apply pressure is modified and line pressure is elevated as well by wear or modification the clutch piston can receive 150-200 pressure across the area. A set of blades 23 What is a stage defined as.

Changed transmission fluid filter and replaced with rotella 30 w. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test new features. Not enough oil in torque converter 19 because torque converter inlet relief valve 15 is open.

With oil at normal operating. Posted by simbarashe on Jul 06 2019. 25 Cubic Yard Multipurpose Mp Clamshell Bucket Diesel Engine Driven Ded 4-Wheel Drive Model 924G.

This can cause various symptoms such as slipping overheating and rough acceleration. What does the torque converter outlet relief do. Start engine and operate engine at high idle TM 5-3805-290-10.

To get proper power from the torque converter you need to allow enough time for converter pressure to form. Share this page. How to Test a Torque Converter.

Be consistent with the units. One of the important objectives of this work is to evaluate and investigate the torque converter by changing the stator angle and analyzing the pressure and outlet velocity with existing torque converter. We need to remember line pressure feeds the converter regulator valve.

P is the ratio of force to the area over which that force is distributed and it is the amount of force acting per unit area. I am rigging up a better gauge to test my torque converter outlet pressure. Failure in oil pump 11 or torque converter 19.

Since pressure forcearea and torque f wrenchr wrench then after a little algebra the pressure would be. Torque converter outlet pressure is too high. Converter inlet relief valve limits the maximum oil pressure to the torque converter.

By design most valves limit apply pressure to the TC piston around 130 psi. If the area is figured in in 2 and the pitch is in threads in the torque should be in ft -in. Relief Valve Torque Converter Outlet 0009.

For example unexpectedly low fluid pressure or even the air pressure levels in the system can correlate with overheating. FIGURE 11 Torque converter performance for pump 1 stator 1. Clicking this will make more experts see the question and we will remind you when it gets answered.

High idle is correct Step 8 but stall rpm speed in Step 9 is too high. The torque converter facilitates full-variable speed range 0100. Torque ratio equals 1.

Nige thank you for your response. P 2 pi torque pitch area of washer NOTE 1. When the torque converter fails it can cause the transmission to receive too much or too little fluid.

Is to prevent damage to the torque converter when the engine is started and the oil is cold. A pressure of 1 Pa is small which approximately equals the pressure exerted by a dollar bill resting flat on a table. Positive-outlet pumps show a.

If it doesnt you wont get the power you need. The torque converter also known as variable ratio transmission covers a wide speed range and provides fixed-speed input to the WRSG. Had checked pressure before directly from port on top of pump.

What is the function of torque converter inlet and outlet pressure. Too much restriction in oil cooler 17. Temperature torque converter inlet pressure must be below values shown in Table 8.

The purpose of inlet relief valve. Torque - Conversion Torque moment of force or moment is the tendency of a force to rotate an object about an axis fulcrum or pivot. Readjust torque converter outlet relief valve pressure Retest using pressure gauge Inspect converter outlet relief valve spool Replace outlet relief valve as needed Replenish oil level Clean oil flow circuit or dirty oil strainer Replace failed oil pump Repair air leaks on inlet side of pump Replace worn seals around the clutch piston Repair replace stuck modulating relief valve.

Maintains the working pressure inside the converter prevents cavitation and aeration and helps keep oil in the converter 22 What defines an element in regards to torque converters. Therefore wind energy conversion efficiency is high similar to Type 4 WECS Yaramasu et al 2015. The pump can and will fail due to clogged filters over-worn suction lines could begin to crack or there could be an issue with the charging pump.

Whereas the inlet pressure and the outlet pressure of the torque converter increase as the rotational speed Nt increases the back pressure at 3000 rpm is less than the back pressure at 2000 rpm. In Mathematical torque is defined as the cross product of the lever-arm distance and force which tends to produce rotation. The SI unit of pressure is the pascal symbol Pa.

Torque Converter Installation Problems. Home made pressure tester for torque converter finds leaks. Torque Converter Inlet Pressure Test SOLENOID VALVE TRANSMISSION CLUTCH TESTING Manual 1 Loader Light Scoop.

The torque converters with different angle blade are designed by using CREO V20 and analyzing by using ANSYS software and getting the. The solenoid valve controls the fluid pressure of the hydraulic transmission which enters the lock-up clutch. Transmission Torque Converter Inlet Pressure.

Therefore in the method that makes use of the inlet pressure and the outlet pressure of the torque converter feedback is sometimes not properly performed.
